0019701 | LAPP

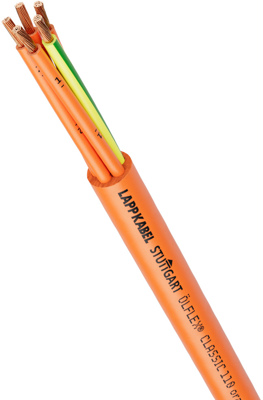

PVC control line ÖLFLEX CLASSIC 110 ORANGE 3 G 1.0 mm², unshielded, orange, 0019701

Order No.: 33P5898
EAN: 4044774546063
MPN:
0019701
ÖLFLEX CLASSIC 110 Orange 3G1
0019701 LAPP Control Cables
Image may differ
Unit Price (€ / mtr.)
2.1301 € *
Available: 80 mtr.
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 mtr.
2.1301 €
10 mtr.
1.8445 €
50 mtr.
1.6779 €
100 mtr.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale

Control cable, 0019701, LAPP

The 0019701 is an PVC insulated power and control cable for flexible use and fixed installation for normal mechanical stresses. It is suitable for use in dry, damp and wet areas. If using outdoors, observe the indicated temperature range and use with UV protection. This product is largely resistant to acids, alkalis and certain oils at room temperature.

Features

  • Good chemical resistance
  • Torsion-resistant
  • Flame-retardant
  • Space-saving installation due to small cable diameters
  • High electrical performance due to 4 kV test voltage

Applications

  • Electrical lighting and socket circuits for maintenance or repair purposes
  • Undervoltage protection circuits
  • Interlocking control circuits
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Technical specifications
Filter Property Value
Material PVC
Cable material copper, bright
Version control line
Conductor category CL.5 = fine stranded
Number of cores 3
Shielding unshielded
Core insulation material PVC
Test voltage 4 kV
Cable cross-section 1.0 mm²
Core colour sequence orange
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -5 °C to 70 °C
Standard number IEC, EN
Rated voltage U0 300 V
Drag chain suitable No
Protective conductor available Yes
Outer diameter 6 mm
Colour orange
Rated voltage 500 V
Halogen free No
Logistics
Property Value
Customs tariff number 85444995
Country of origin BG
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
