0015802 | LAPP

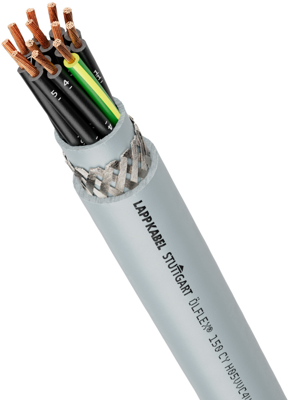

PVC control line ÖLFLEX 150 CY 2 x 1.5 mm², shielded, gray, 0015802
Unit Price (€ / mtr.)
4.7838 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 0015802, LAPP
Features
- Flame-retardant
- Oil-resistant
- Good chemical resistance
- Interference signals
- High degree of screening
- Low transfer impedance
Applications
- Plant engineering
- Industrial machinery
- Heating and air-conditioning systems
- In EMC-sensitive environments
- Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
Technical specifications
| Core insulation material | PVC | |
| Colour | gray | |
| Number of cores | 2 | |
| Protective conductor available | No | |
| Outer diameter | 10 mm | |
| Drag chain suitable | No | |
| Test voltage | 3 kV | |
| Rated voltage UL/CSA | 600 V | |
| Halogen free | No | |
| Core colour sequence | black | |
| Cable cross-section | 1.5 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | IEC, EN | |
| Rated voltage | 500 V |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
