0014170 | LAPP

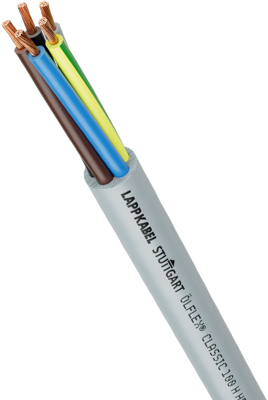

HFFR connection cable ÖLFLEX CLASSIC 100 H 4 G 10 mm², unshielded, gray, 0014170
Order No.: 33P808
EAN: 4044776008408
MPN:
0014170
ÖLFLEX CLASSIC 100 H 4G10
Series: ÖLFLEX CLASSIC 100 H
Unit Price (€ / mtr.)
25.7397 € *
Standard delivery time from the manufacturer is: On Request
Connection cable, 0014170, LAPP
Features
- Flame retardant
- No flame-propagation
- Halogen-free
- Low smoke density
- Oil-resistant
- Ozone-resistant
Applications
- Public buildings like airports or railway stations
- Plant engineering, Industrial machinery, Heating and air-conditioning systems
- Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Technical specifications
| Core insulation material | HFFR | |
| Colour | gray | |
| Number of cores | 4 | |
| Protective conductor available | Yes | |
| Outer diameter | 17.9 mm | |
| Drag chain suitable | No | |
| Test voltage | 4 kV | |
| Halogen free | Yes | |
| Core colour sequence | VDE 0293-308 | |
| Cable cross-section | 10 mm² | |
| Version | connection line | |
| Material | HFFR | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -30 °C to 70 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 1 kV |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
