00136033 | LAPP

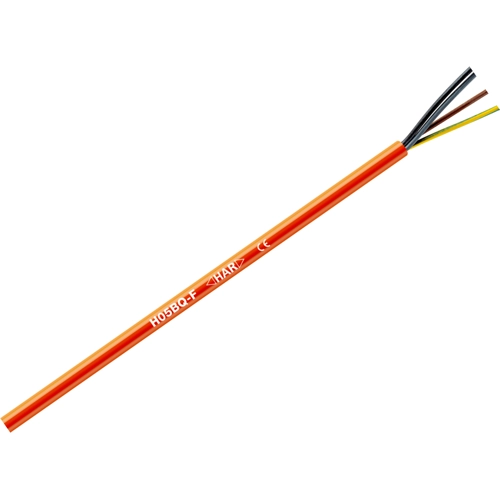

PUR connection cable H05BQ-F 5 G 0.75 mm², AWG 19, unshielded, orange, 00136033
Unit Price (€ / mtr.)
4.9028 € *
Standard delivery time from the manufacturer is: On Request
PUR Power cable, 00136033/100, LAPP
ÖLFLEX® 550 P - PUR power cable, harmonized according H05BQ-F / H07BQ-F type for oil and abrasion resistant use witgh handheld equipment or building machines.
FEATURES
- Suitable for outdoor applications
- Oil-resistant
- Cold-resistant
- Mechanical resistance
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 19 | |
| Colour | orange | |
| Core colour sequence | VDE 0293-308 | |
| Core insulation material | rubber | |
| Temperature range (active) | -40 °C to 90 °C | |
| Drag chain suitable | No | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| Cable cross-section | 0.75 mm² | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Number of cores | 5 | |
| Outer diameter | 9.9 mm | |
| Material | PUR | |
| Test voltage | 3 kV | |
| Product type | connection cable | |
| Protective conductor available | Yes | |
| Standard number | EN 50525-2-21 | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Conductor category | CL.5 = fine stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
