0012941 | LAPP

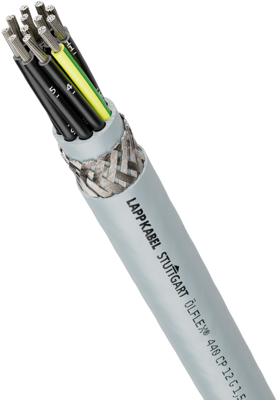

PUR control line ÖLFLEX 440 CP 3 G 1.5 mm², shielded, gray, 0012941
Unit Price (€ / mtr.)
10.353 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 0012941, LAPP
Features
- Resistant to oil and drilling fluids
- Abrasion and notch-resistant
- Halogen-free and flame-retardant
- Flexible at low temperatures
- Mechanical resistance
- Interference signals
Applications
- Industrial machinery and machine tools
- Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
- Construction machinery
- Agricultural equipment
- For indoor and outdoor use
Technical specifications
| Core insulation material | TPE | |
| Colour | gray | |
| Number of cores | 3 | |
| Protective conductor available | Yes | |
| Outer diameter | 9.9 mm | |
| Drag chain suitable | No | |
| Test voltage | 3 kV | |
| Halogen free | Yes | |
| Core colour sequence | black/green-yellow | |
| Cable cross-section | 1.5 mm² | |
| Version | control line | |
| Material | PUR | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Temperature range (active) | -40 °C to 90 °C | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | IEC, EN | |
| Rated voltage | 500 V |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
