0012917 | LAPP

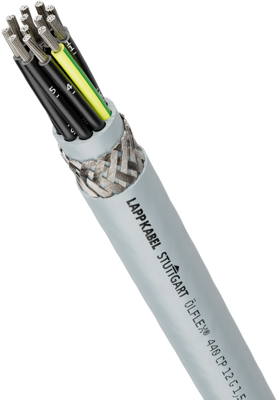

PUR control line ÖLFLEX 440 CP 12 G 0.75 mm², shielded, gray, 0012917

Order No.: 33P557
EAN: 4044774578644
MPN:
0012917
ÖLFLEX 440 CP 12G0,75
Series: ÖLFLEX 440 CP
0012917 LAPP Control Cables
Image may differ
Unit Price (€ / mtr.)
19.516 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,951.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
19.516 €

Control cable, 0012917, LAPP

Features

  • Resistant to oil and drilling fluids
  • Abrasion and notch-resistant
  • Halogen-free and flame-retardant
  • Flexible at low temperatures
  • Mechanical resistance
  • Interference signals

Applications

  • Industrial machinery and machine tools
  • Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
  • Construction machinery
  • Agricultural equipment
  • For indoor and outdoor use
Technical specifications
Core insulation material TPE
Colour gray
Number of cores 12
Protective conductor available Yes
Outer diameter 14.5 mm
Drag chain suitable No
Test voltage 3 kV
Halogen free Yes
Core colour sequence black/green-yellow
Cable cross-section 0.75 mm²
Version control line
Material PUR
Cable material copper, tin-plated
Shielding shielded
Rated voltage U0 300 V
Temperature range (unmoved) -50 °C to 90 °C
Temperature range (active) -40 °C to 90 °C
Conductor category CL.5 = fine stranded
Standard number IEC, EN
Rated voltage 500 V
Logistics
Country of origin FR
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
