0012768 | LAPP

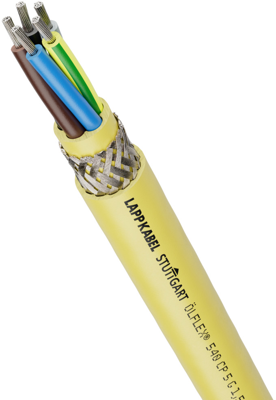

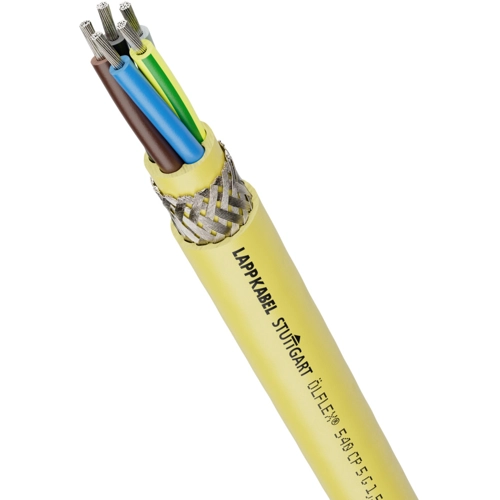

PUR connection cable ÖLFLEX 540 CP 3 G 2.5 mm², shielded, yellow, 0012768
Unit Price (€ / mtr.)
15.1368 € *
Standard delivery time from the manufacturer is: On Request
Connection cable, 0012768, LAPP
Features
- Resistant to oil and drilling fluids
- Abrasion and notch-resistant
- Halogen-free and flame-retardant
- Flexible down to -40°C
Applications
- Connection and extension cables
- Construction machinery
- Building sites, camp sites, stage applications
- Agricultural equipment
- For indoor and outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | PUR | |
| Protective conductor available | Yes | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 3 kV | |
| Product type | connection cable | |
| Temperature range (active) | -40 °C to 90 °C | |
| Standard number | VDE | |
| Number of cores | 3 | |
| Core insulation material | TPE | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Colour | yellow | |
| Outer diameter | 12.5 mm | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
