0012467/100 | LAPP

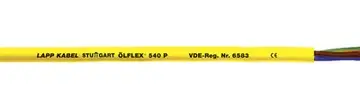

PUR connection cable ÖLFLEX 540 P 2 x 2.5 mm², AWG 14, unshielded, yellow, 0012467/100

Order No.: 30P7950
EAN: 4044774616698
MPN:
0012467/100
ÖLFLEX 540 P 2X2,5
Series: ÖLFLEX 540 P
0012467/100 LAPP Control Cables
Image may differ
Unit Price (€ / mtr.)
6.7354 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
673.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
6.7354 €

PUR Power cable, 0012467/100, LAPP

ÖLFLEX® 540 P - PUR power cable, VDE certified outdoor use an constructions sites with yellow jacket colour - cold flexible, abrasion resistant, halogen-free .

FEATURES

  • Mechanical resistance
  • Halogen-free
  • Cold-resistant
  • Suitable for outdoor use

Technical Data

  • Cable material: Copper, tin-plated
  • Core insulation material: PUR
  • Color: yellow
  • Conductor category: Cl.5 = fine-stranded
Technical specifications
Core insulation material TPE
Colour yellow
Number of cores 2
Protective conductor available No
Outer diameter 9.7 mm
Drag chain suitable No
AWG cross-section AWG 14
Test voltage 3 kV
Halogen free Yes
Core colour sequence VDE 0293-308
Cable cross-section 2.5 mm²
Version connection line
Material PUR
Cable material copper, tin-plated
Shielding unshielded
Rated voltage U0 450 V
Temperature range (unmoved) -50 °C to 90 °C
Temperature range (active) -40 °C to 90 °C
Conductor category CL.5 = fine stranded
Standard number VDE
Rated voltage 750 V
Logistics
Country of origin FR
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
