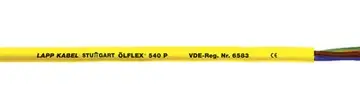

PUR connection cable ÖLFLEX 540 P 5 G 1.0 mm², AWG 18, unshielded, yellow, 00124603/100

Order No.: 30P8009
EAN: 4044774616360
MPN:
00124603/100
ÖLFLEX 540 P 5G1
Series: ÖLFLEX 540 P
00124603/100 LAPP Control Cables
Image may differ
Unit Price (€ / mtr.)
5.0456 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
504.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
5.0456 €

PUR Power cable, 00124603/100, LAPP

ÖLFLEX® 540 P - PUR power cable, VDE certified outdoor use an constructions sites with yellow jacket colour - cold flexible, abrasion resistant, halogen-free .

FEATURES

  • Mechanical resistance
  • Halogen-free
  • Cold-resistant
  • Suitable for outdoor use

Technical Data

  • Cable material: Copper, tin-plated
  • Core insulation material: PUR
  • Color: yellow
  • Conductor category: Cl.5 = fine-stranded
Technical specifications
Filter Property Value
Halogen free Yes
Colour yellow
Test voltage 3 kV
Core colour sequence VDE 0293-308
Cable cross-section 1.0 mm²
Outer diameter 8.6 mm
Version connection line
Rated voltage U0 300 V
Material PUR
Temperature range (active) -40 °C to 90 °C
AWG cross-section AWG 18
Number of cores 5
Standard number VDE
Protective conductor available Yes
Rated voltage 500 V
Temperature range (unmoved) -50 °C to 90 °C
Shielding unshielded
Core insulation material TPE
Conductor category CL.5 = fine stranded
Drag chain suitable No
Cable material copper, tin-plated
Logistics
Property Value
Customs tariff number 85444995
Country of origin FR
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
