10401100 | LAPP

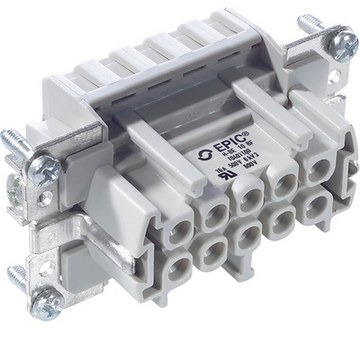

Socket contact insert, H-B 10, 10 pole, spring-clamp connection, with PE contact, 10401100
Unit Price (€ / pc.)
14.1491 € *
Available: 8 pcs.
Total Price:
14.15 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1491 €
5 pcs.
12.7330 €
10 pcs.
11.6739 €
50 pcs.
10.9718 €
100 pcs.
10.2578 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact insert, 10401100, LAPP
The multi-functional insert with spring-type terminal can be used for higher voltages and currents and is highly reliable.
Features
- Mechanical and plant engineering
- Assembly time
- Robust
- Temperature-resistant
Applications
- Mechanical engineering
- Light & sound technology
- Plastics industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 10 pole | |
| PE contact | Yes | |
| Contact connection | spring-clamp connection | |
| Shell size | H-B 10 | |
| Version | socket insert |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
