2170016 | LAPP

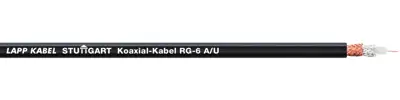

Coaxial cable, 75 Ω, RG 6 A/U, black
Unit Price (€ / mtr.)
4.7362 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
473.62 € *
Price list
Quantity
Price per unit*
100 mtr.
4.7362 €
500 mtr.
4.3554 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial cable RG 6 A/U, 2170016, LAPP
The 2170016 is a coaxial cable for radio and computer systems as well as applications related to commercial radio-frequency (high frequency) technology and electronics. It allows distortion-free and low-attenuation transmission of signals with a high bandwidth over shorter distances and were designed for operating frequencys up to 1 GHz. The cable is intended for limited movements and for fixed installation in dry and damp interiors and outdoors. It meets the requirements concerning high ambient temperatures and chemical stress.
Features
- Flame-retardant
- Mechanical and plant engineering
- Suitable for outdoor use
- Cold-resistant
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capicity/m | 67 pF/m | |
| Material | PVC | |
| Impedance | 75 Ω | |
| max. operating temperature | 80 °C | |
| Dielectric material | PE | |
| min. operating temperature | -40 °C | |
| Shielding | shielded | |
| Colour | black | |
| Outer diameter | 8.4 mm | |
| Dielectric diameter | 4.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85442000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
