61723354 | LAPP

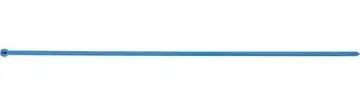

Cable tie, PA, (L x W) 345 x 6.9 mm, bundle-Ø 4.8 to 102 mm, blue, UV resistant, -60 to 85 °C, 61723354
Order No.: 32P8083
EAN: 4044776109198
MPN:
61723354
KABELBINDER TY-RAP TY527M-NDT
Unit Price (€ / pc.)
1.7969 € *
Standard delivery time from the manufacturer is: On Request

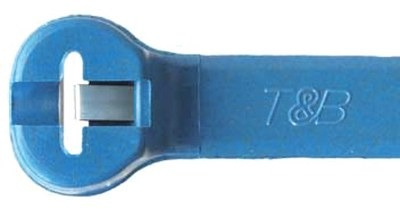

Cable tie with steel nose, 61723354, LAPP
The 61723354 is a cable tie with an unique compound that can be detected by X-Ray equipment, metal detectors and visual inspection equipment. This product is resistant to conventional solvents such as alcohol and ketone, aliphatic and aromatic hydrocarbons such as oil, grease, gasoline and weak alkalis; not resistant to acids and metallic salts.
Features
- It mnimizes the risk of product contamination
- Suitable for pharmaceutical production
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. Bundle diameter | 4.8 mm | |
| Material | PA | |
| max. operating temperature | 85 °C | |
| Version | with steel tongue | |
| max. Bundle diameter | 102 mm | |
| Width | 6.9 mm | |
| Halogen free | Yes | |
| Product type | cable tie | |
| Chemical resistant | No | |
| Min holding force | 540 N | |
| UV-resistant | Yes | |
| min. operating temperature | -60 °C | |
| Colour | blue | |
| Length | 345 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
