61716370 | LAPP
Cable tie, PA, (L x W) 208 x 3.6 mm, bundle-Ø 2 to 50 mm, natural, -40 to 85 °C, 61716370
Order No.: 32P8050
EAN: 4044773212549
MPN:
61716370
KABELBINDER TY-RAP TY 242 M 20
Unit Price (€ / pc.)
0.1630 € *
Standard delivery time from the manufacturer is: On Request

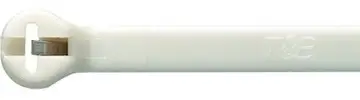

Cable tie with steel nose, 61716370, LAPP
The 61716370 is a cable tie with high strength that is constant even under harsh conditions: extreme temperature ranges, humidity and extreme cold. The steel blade is fixed to the tie head and is made from corrosion-resistant, anti-magnetic steel. It is used for outdoor installation and maintenance of power plants.
Features
- Lock is resistant to shocks and vibrations
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | with steel tongue | |
| Width | 3.6 mm | |
| min. operating temperature | -40 °C | |
| Min holding force | 180 N | |
| min. Bundle diameter | 2 mm | |
| Product type | cable tie | |
| Material | PA | |
| UV-resistant | No | |
| Length | 208 mm | |
| Colour | natural | |
| max. operating temperature | 85 °C | |
| max. Bundle diameter | 50 mm | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
