61825260 | LAPP
Clamp, (W) 18.5 mm, mounting Ø 6.4 mm, clamping range 35 mm, steel/CR, black/metal, for cables, hoses and tubes, 61825260
Unit Price (€ / pc.)
1.8326 € *
Standard delivery time from the manufacturer is: On Request

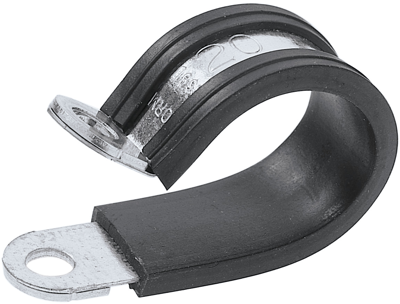

Cable clamp, 61825260, LAPP
The 61825260 is a cable clamp that is used throughout industry and also meet the high requirements in the automobile industry. With the rubber profile and several ribbon widths, together with the wide range of diameters, a large number of applications can be covered.
Features
- Fast and easy mounting
- Assembly time
- Reliability
Applications
- Plant engineering
- Railway applications
- Automotive industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | 35 mm | |
| Material | steel/CR | |
| Mounting hole size | 6.4 mm | |
| max. operating temperature | 120 °C | |
| Product type | clamp | |
| Width | 18.5 mm | |
| min. operating temperature | -40 °C | |
| Suitable for | cables, hoses and tubes | |
| Colour | black/metal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
