61825210 | LAPP
Clamp, (W) 18.5 mm, mounting Ø 6.4 mm, clamping range 13 mm, steel/CR, metal/black, for cables, hoses and tubes, 61825210
Unit Price (€ / pc.)
1.1067 € *
Standard delivery time from the manufacturer is: 6 Weeks

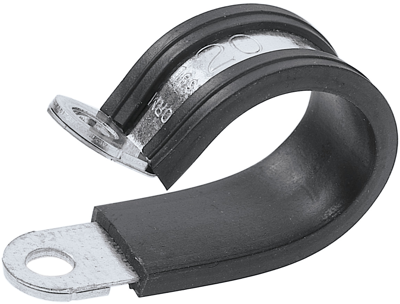

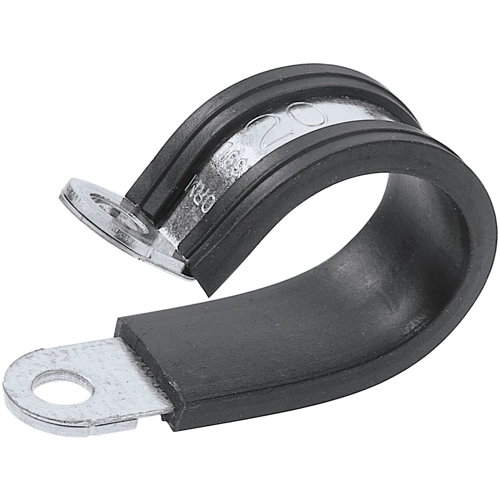

Cable clamp, 61825210, LAPP
The 61825210 is a cable clamp that is used throughout industry and also meet the high requirements in the automobile industry. With the rubber profile and several ribbon widths, together with the wide range of diameters, a large number of applications can be covered.
Features
- Fast and easy mounting
- Assembly time
- Reliability
Applications
- Plant engineering
- Railway applications
- Automotive industry
Technical specifications
| Colour | metal/black | |
| Material | steel/CR | |
| Mounting hole size | 6.4 mm | |
| Product type | clamp | |
| min. operating temperature | -35 °C | |
| Suitable for | cables, hoses and tubes | |
| Width | 18.5 mm | |
| clamping force range | 13 mm | |
| max. operating temperature | 100 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 73269098 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
