61825180 | LAPP
Clamp, (W) 15 mm, mounting Ø 5.3 mm, clamping range 8 mm, steel/CR, black/metal, for cables, hoses and tubes, 61825180
Unit Price (€ / pc.)
1.1067 € *
Standard delivery time from the manufacturer is: 6 Weeks

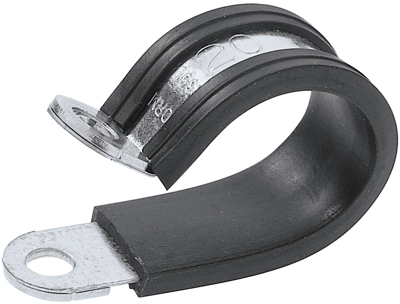

Cable clamp, 61825180, LAPP
The 61825180 is a cable clamp that is used throughout industry and also meet the high requirements in the automobile industry. With the rubber profile and several ribbon widths, together with the wide range of diameters, a large number of applications can be covered.
Features
- Fast and easy mounting
- Assembly time
- Reliability
Applications
- Plant engineering
- Railway applications
- Automotive industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black/metal | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C | |
| Material | steel/CR | |
| Mounting hole size | 5.3 mm | |
| Width | 15 mm | |
| Suitable for | cables, hoses and tubes | |
| clamping force range | 8 mm | |
| Product type | clamp |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73269098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
