54115255 | LAPP

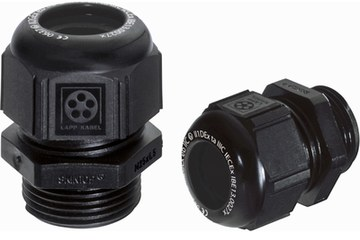

Cable gland, M40, 46 mm, Clamping range 19 to 28 mm, IP68, black, 54115255
Order No.: 32P2810
EAN: 4044773335286
MPN:
54115255
SKINTOP KR-M 40x1,5 ATEX plus
Series: SKINTOP K-M
Unit Price (€ / pc.)
9.4962 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.50 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4962 €
10 pcs.
8.6751 €
50 pcs.
8.1396 €
100 pcs.
7.5922 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Thread size | M40 | |
| max. operating temperature | 80 °C | |
| max. clamping range | 28 mm | |
| Length | 52 mm | |
| Product type | cable gland | |
| min. clamping range | 19 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 46 mm | |
| Degree of protection (IP) | IP68 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
