53119140 | LAPP

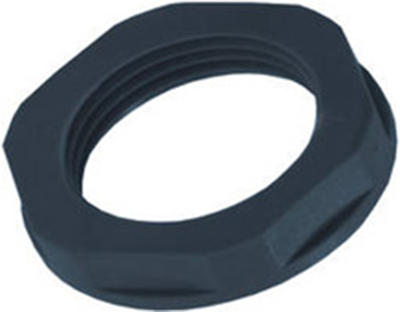

Counter nut, M32, 41 mm, black, 53119140

Order No.: 12H6748
EAN: 4044773165166
MPN:
53119140
SKINTOP GMP-GL-M 32X1,5
53119140 LAPP Cable Glands Image 1
53119140 LAPP Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Available: 85 pcs.
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
25 pcs.
1.1305 €
100 pcs.
1.0234 €
500 pcs.
0.9520 €
1000 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

Corresponding metric locknuts series SKINTOP GMP-GL-M, type 5311.

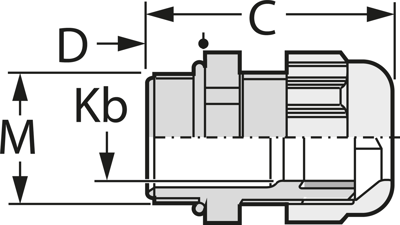

Made of glass fiber-reinforced polyamide. Width across flats in [mm] (dimension W).

Technical attributes (thread, cable clamping range, dimensions (C/D), color (silver gray/RAL 7001, black/RAL 9005)): M 32, W 41, black

Technical specifications
Filter Property Value
Colour black
Thread size M32
max. operating temperature 100 °C
min. operating temperature -20 °C
spanner size 41 mm
Material PA
Product type counter nut
Logistics
Property Value
Country of origin CH
Customs tariff number 39269097
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
