53112886 | LAPP

Cable gland, M20, 25/27 mm, Clamping range 5 to 10 mm, IP68, black, 53112886

Order No.: 12H7148
EAN: 4044773833287
MPN:
53112886
SKINTOP CLICK-R M20 BK
Series: SKINTOP CLICK-R

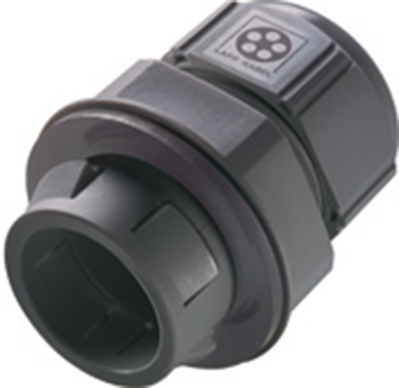

53112886 LAPP Cable Glands Image 1
53112886 LAPP Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
2.6894 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
2.69 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6894 €
25 pcs.
2.4514 €
50 pcs.
2.2134 €
100 pcs.
2.0825 €
250 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale

Snap-in cable glands series SKINTOP CLICK/CLICK-R, type Lapp Kabel 5311.

For wall thickness from 1.0 to 4.0 mm; Width across gaps: W1/W2: for CLICK(-R) 16 = 19/22 mm, for CLICK(-R) 20 = 25/27 mm, for CLICK(-R) 25 = 30/34 mm. Material: polyamide. Degree of protection: IP 68. Operating temperatures: –20 to +100 °C. Certifications: VDE.

Black (RAL 9005).

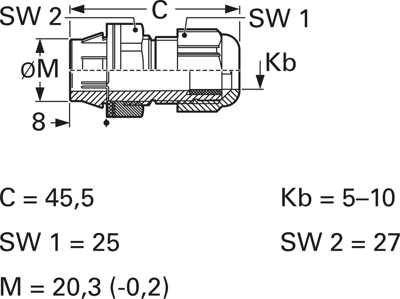

Technical attributes (type, clamping range, mounting hole M, overall length C): CLICK-R 20, 5.0 to 10 mm, M 20.3, C 45.5 mm

Technical specifications
Filter Property Value
spanner size 25/27 mm
Colour black
Degree of protection (IP) IP68
min. operating temperature -20 °C
max. operating temperature 100 °C
Material PA
max. clamping range 10 mm
min. clamping range 5 mm
Length 45 mm
Thread size M20
Product type cable gland
Logistics
Property Value
Customs tariff number 39269097
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
