53112691 | LAPP

Cable gland, M25, 30/32 mm, Clamping range 6 to 13 mm, IP68, light gray, 53112691

Order No.: 12H7110
EAN: 4044773768343
MPN:
53112691
SKINTOP CLICK-R M25 LGY
Series: SKINTOP CLICK-R

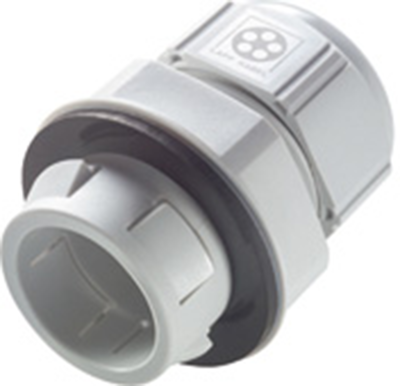

53112691 LAPP Cable Glands Image 1
53112691 LAPP Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
3.6533 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.65 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6533 €
25 pcs.
3.3320 €
50 pcs.
2.9869 €
100 pcs.
2.8203 €
250 pcs.
2.5704 €
*incl. VAT plus shipping costs
Subject to prior sale

Snap-in cable glands series SKINTOP CLICK/CLICK-R, type Lapp Kabel 5311.

For wall thickness from 1.0 to 4.0 mm; Width across gaps: W1/W2: for CLICK(-R) 16 = 19/22 mm, for CLICK(-R) 20 = 25/27 mm, for CLICK(-R) 25 = 30/34 mm. Material: polyamide. Degree of protection: IP 68. Operating temperatures: –20 to +100 °C. Certifications: VDE.

Light-gray (RAL 7035).

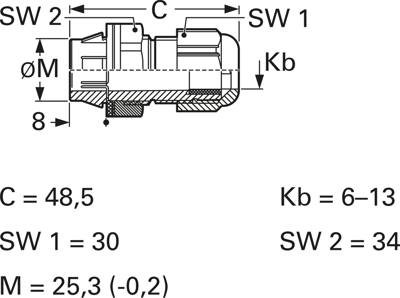

Technical attributes (type, clamping range, mounting hole M, overall length C): CLICK-R 25, 6.0 to 13 mm, M 25.3, C 48.5 mm

Technical specifications
Filter Property Value
spanner size 30/32 mm
Colour light gray
Degree of protection (IP) IP68
min. operating temperature -40 °C
max. operating temperature 100 °C
Material PA
max. clamping range 13 mm
min. clamping range 6 mm
Length 48 mm
Thread size M25
Product type cable gland
Logistics
Property Value
Customs tariff number 39269097
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
