53112680 | LAPP
Cable gland, M63, 67 mm, Clamping range 34 to 45 mm, IP69, silver gray, 53112680
Order No.: 12H6466
EAN: 4044773745849
MPN:
53112680
SKINTOP MS-SC-M BRUSH 63
Series: SKINTOP MS-M BRUSH
Unit Price (€ / pc.)
123.6648 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
123.66 € *
Price list
Quantity
Price per unit*
1 pcs.
123.6648 €
5 pcs.
114.8707 €
*incl. VAT plus shipping costs
Subject to prior sale

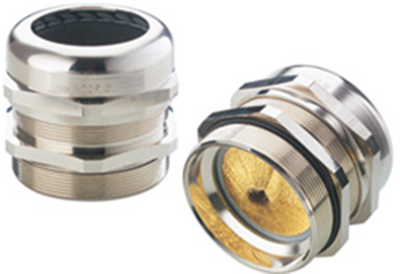

EMC screwed cable glands series SKINTOP MS-SC-M BRUSH, type Lapp Kabel 5311.

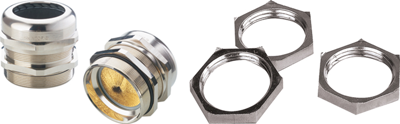

With brass brushes, for optimum low-impedance 360° contact; Material: nickel-plated brass. Degree of protection: IP 68. Operating temperatures: –30 to +100 °C. For optimum contact to housings with varnished, anodized or powder-coated finish you need the equipotential bonding locknut series SKINDICHT SM-PON-M.
Technical attributes (type, size, for outer diameter, minimum diameter across braid (G), width across flats (W)): 53112680, M 63, 34 to 45 mm, G 25 mm, W 67 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 67 mm | |
| Length | 67 mm | |
| min. operating temperature | -40 °C | |
| Colour | silver gray | |
| Material | brass, nickel-plated | |
| Thread size | M63 | |
| min. clamping range | 34 mm | |
| max. clamping range | 45 mm | |
| Degree of protection (IP) | IP69 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
