53112670 | LAPP
Cable gland, M50, 54 mm, Clamping range 27 to 35 mm, IP69, silver, 53112670
Unit Price (€ / pc.)
83.1691 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
415.85 € *
Price list
Quantity
Price per unit*
5 pcs.
83.1691 €
10 pcs.
77.9807 €
25 pcs.
72.7923 €
50 pcs.
67.5563 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 53112670, LAPP

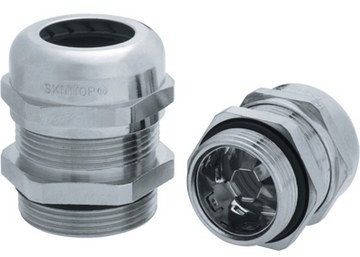

SKINTOP® MS-SC-M, brass cable gland with low-resistance screen contact and highly conductive, flexible EMC contact, easy to assemble
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 54 mm | |
| Colour | silver | |
| Degree of protection (IP) | IP69 | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 100 °C | |
| Material | brass, nickel-plated | |
| max. clamping range | 35 mm | |
| min. clamping range | 27 mm | |
| Length | 55.5 mm | |
| Thread size | M50 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
