53112650 | LAPP

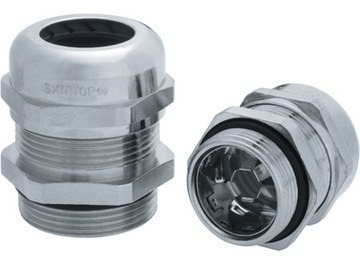

Cable gland, M32, 36 mm, Clamping range 11 to 21 mm, IP69, silver, 53112650
Unit Price (€ / pc.)
27.4652 € *
Available: 35 pcs.
Total Price:
27.47 € *
Price list
Quantity
Price per unit*
1 pcs.
27.4652 €
5 pcs.
25.8111 €
15 pcs.
24.8234 €
50 pcs.
23.7405 €
150 pcs.
22.7528 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 53112650, LAPP
SKINTOP® MS-SC-M, brass cable gland with low-resistance screen contact and highly conductive, flexible EMC contact, easy to assemble
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | M32 | |
| max. operating temperature | 100 °C | |
| max. clamping range | 21 mm | |
| Length | 45.5 mm | |
| Product type | cable gland | |
| min. clamping range | 11 mm | |
| min. operating temperature | -25 °C | |
| spanner size | 36 mm | |
| Degree of protection (IP) | IP69 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
