53112640LF | LAPP

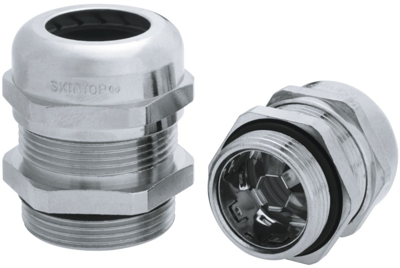

Cable gland, M25, 29 mm, Clamping range 9 to 17 mm, IP68/IP69, silver, 53112640LF
Order No.: 33P8019
EAN: 4056155145383
MPN:
53112640LF
SKINTOP MS-SC-M 25x1,5
Series: SKINTOP MS-SC-M
Unit Price (€ / pc.)
15.7675 € *
Standard delivery time from the manufacturer is: 6 Weeks
The 53112640LF is a nickel-plated brass cable gland especially designed for copper-screened cables and is used to achieve a low-resistance screen contact, strain relief and high protection class.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | M25 | |
| max. operating temperature | 100 °C | |
| max. clamping range | 17 mm | |
| Length | 37.5 mm | |
| Product type | cable gland | |
| min. clamping range | 9 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 29 mm | |
| Degree of protection (IP) | IP68/IP69 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
