53112640 | LAPP
Cable gland, M25, 29 mm, Clamping range 9 to 17 mm, IP69, silver, 53112640
Unit Price (€ / pc.)
15.4700 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
386.75 € *
Price list
Quantity
Price per unit*
25 pcs.
15.4700 €
50 pcs.
14.4466 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 53112640, LAPP

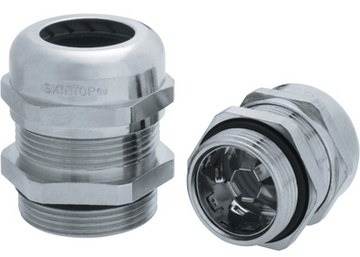

SKINTOP® MS-SC-M, brass cable gland with low-resistance screen contact and highly conductive, flexible EMC contact, easy to assemble
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | M25 | |
| max. operating temperature | 100 °C | |
| max. clamping range | 17 mm | |
| Length | 38.5 mm | |
| Product type | cable gland | |
| min. clamping range | 9 mm | |
| min. operating temperature | -25 °C | |
| spanner size | 29 mm | |
| Degree of protection (IP) | IP69 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
