53112630 | LAPP

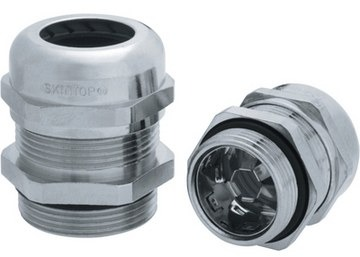

Cable gland, M20, 24 mm, Clamping range 7 to 13 mm, IP69, silver, 53112630
Unit Price (€ / pc.)
14.4228 € *
Available: 8 pcs.
Total Price:
14.42 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4228 €
10 pcs.
12.6973 €
50 pcs.
11.8405 €
150 pcs.
11.3169 €
500 pcs.
10.7338 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 53112630, LAPP
SKINTOP® MS-SC-M, brass cable gland with low-resistance screen contact and highly conductive, flexible EMC contact, easy to assemble
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | M20 | |
| max. operating temperature | 100 °C | |
| max. clamping range | 13 mm | |
| Length | 37 mm | |
| Product type | cable gland | |
| min. clamping range | 7 mm | |
| min. operating temperature | -25 °C | |
| spanner size | 24 mm | |
| Degree of protection (IP) | IP69 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
