53111420 | LAPP
Cable gland, M20, 25 mm, Clamping range 6 to 13 mm, IP66, light gray, 53111420
Order No.: 32P3056
EAN: 4044773176063
MPN:
53111420
SKINTOP ST-M 20x1,5 RAL7035LGY
Series: SKINTOP ST-M
Unit Price (€ / pc.)
1.0115 € *
Available: 58 pcs.
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0115 €
10 pcs.
0.9520 €
100 pcs.
0.8687 €
500 pcs.
0.8092 €
1000 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

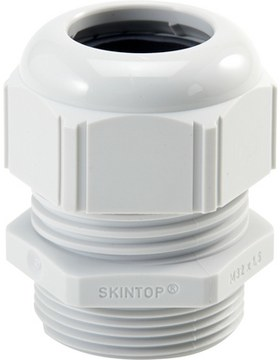

Cable gland, 53111420, LAPP KABEL
Skintop ST-M, increased oil-resistant plastic cable gland with variable clamping ranges, permanent vibration protection, for offshore platforms.

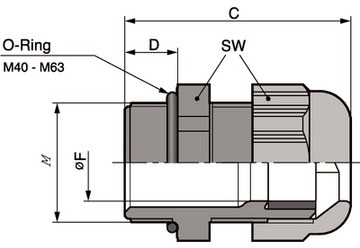

Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 25 mm | |
| max. clamping range | 13 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C | |
| Degree of protection (IP) | IP66 | |
| Thread size | M20 | |
| Length | 37 mm | |
| Colour | light gray | |
| Material | PA | |
| Product type | cable gland | |
| min. clamping range | 6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
