53111240 | LAPP

Cable gland, M32, 36 mm, Clamping range 11 to 21 mm, IP68, black, 53111240

Order No.: 12H6818
EAN: 4044773176841
MPN:
53111240
SKINTOP ST-M 32X1,5
Series: SKINTOP ST-M

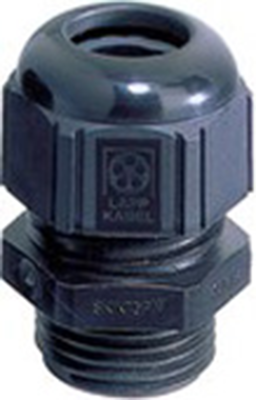

53111240 LAPP Cable Glands Image 1
53111240 LAPP Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
3.0345 € *
Available: 29 pcs.
Total Price:
3.03 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0345 €
10 pcs.
2.8084 €
100 pcs.
2.5823 €
500 pcs.
2.4276 €
1000 pcs.
2.2015 €
*incl. VAT plus shipping costs
Subject to prior sale

Metric screwed cable glands series SKINTOP ST-M, type Lapp Kabel 5311.

For reliable and absolutely protective strain relief of the cable. Fixing, centering, sealing and strain relief in a single pass by tightening the pressure screw; Material: polyamide. Seal ring: CR. Operating temperatures: –40 to +100 °C. Degree of protection: IP 69 K. The locknut is not included (please order separately).

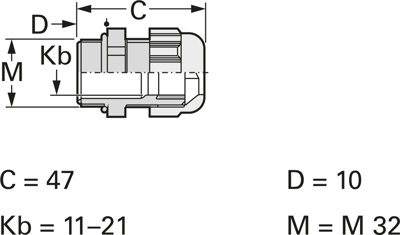

Technical attributes (thread, cable clamping range, dimensions (C/D), color (silver gray/RAL 7001, black/RAL 9005)): M 32, 11 to 21 mm, C 47/D 10 mm, black

Technical specifications
Thread size M32
max. operating temperature 100 °C
min. clamping range 11 mm
min. operating temperature -20 °C
Material PA
spanner size 36 mm
Colour black
Length 47 mm
max. clamping range 21 mm
Degree of protection (IP) IP68
Product type cable gland
Logistics
Country of origin CH
Customs tariff number 39269097
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
