53111030 | LAPP
Cable gland, M25, 30 mm, Clamping range 9 to 17 mm, IP68, silver gray, 53111030
Unit Price (€ / pc.)
1.6422 € *
Available: 35 pcs.
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6422 €
10 pcs.
1.5232 €
100 pcs.
1.3923 €
500 pcs.
1.3090 €
1000 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale

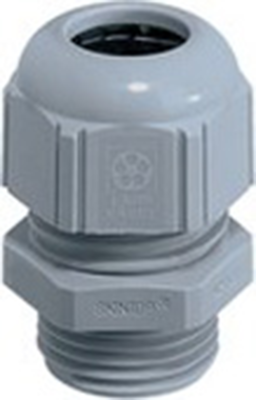

Metric screwed cable glands series SKINTOP ST-M, type Lapp Kabel 5311.
For reliable and absolutely protective strain relief of the cable. Fixing, centering, sealing and strain relief in a single pass by tightening the pressure screw; Material: polyamide. Seal ring: CR. Operating temperatures: –40 to +100 °C. Degree of protection: IP 69 K. The locknut is not included (please order separately).

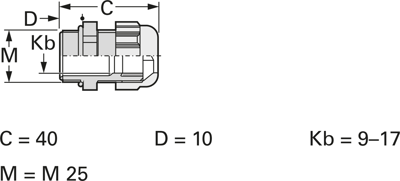

Technical attributes (thread, cable clamping range, dimensions (C/D), color (silver gray/RAL 7001, black/RAL 9005)): M 25, 9.0 to 17 mm, C 40/D 10 mm, silver gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| max. clamping range | 17 mm | |
| Length | 40 mm | |
| min. clamping range | 9 mm | |
| Colour | silver gray | |
| min. operating temperature | -20 °C | |
| Thread size | M25 | |
| spanner size | 30 mm | |
| max. operating temperature | 100 °C | |
| Degree of protection (IP) | IP68 | |
| Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
