53105314 | LAPP

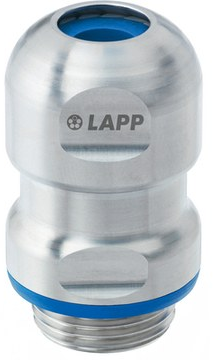

Cable gland, M32, 36 mm, Clamping range 16 to 20 mm, IP68, silver, 53105314
Order No.: 12H6899
EAN: 4099891198947
MPN:
53105314
SKINTOPHYGIENICSCM32X1,5
Series: SKINTOP HYGIENIC SC
Unit Price (€ / pc.)
86.5725 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
432.86 € *
Price list
Quantity
Price per unit*
5 pcs.
86.5725 €
15 pcs.
83.2524 €
50 pcs.
79.5634 €
150 pcs.
76.2552 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 53105314, LAPP
SKINTOP® HYGIENIC, resistant stainless steel cable gland with smooth surfaces for use in product zone.
Features
- Mechanical resistance
- Good chemical resistance
- Wide clamping range
- Interference signals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| Thread size | M32 | |
| max. clamping range | 20 mm | |
| Degree of protection (IP) | IP68 | |
| Length | 56 mm | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| spanner size | 36 mm | |
| Material | stainless steel | |
| Product type | cable gland | |
| min. clamping range | 16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
