53105303 | LAPP
Cable gland, M25, 29 mm, Clamping range 11.5 to 15.5 mm, IP68, silver, 53105303
Order No.: 12H6898
EAN: 4099891198930
MPN:
53105303
SKINTOPHYGIENICSCM25X1,5
Series: SKINTOP HYGIENIC SC
Unit Price (€ / pc.)
74.3274 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
371.64 € *
Price list
Quantity
Price per unit*
5 pcs.
74.3274 €
10 pcs.
69.4008 €
25 pcs.
64.4385 €
*incl. VAT plus shipping costs
Subject to prior sale

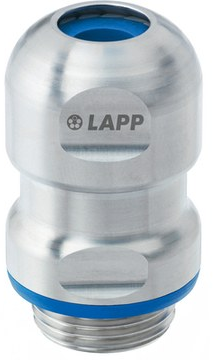

Cable gland, 53105303, LAPP

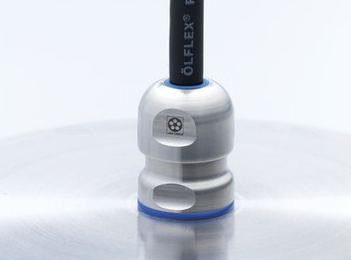

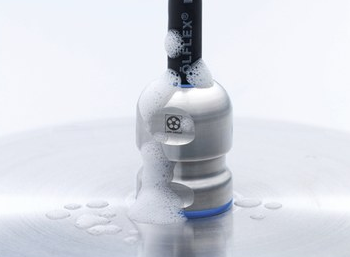

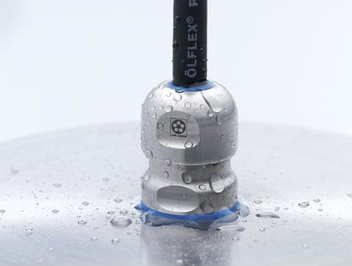

SKINTOP® HYGIENIC, resistant stainless steel cable gland with smooth surfaces for use in product zone.
Features
- Mechanical resistance
- Good chemical resistance
- Wide clamping range
- Interference signals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 29 mm | |
| max. operating temperature | 100 °C | |
| max. clamping range | 15.5 mm | |
| Thread size | M25 | |
| Length | 48.9 mm | |
| Colour | silver | |
| Degree of protection (IP) | IP68 | |
| Material | stainless steel | |
| min. clamping range | 11.5 mm | |
| min. operating temperature | -20 °C | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
