53105300 | LAPP
Cable gland, M12, 16 mm, Clamping range 4 to 6 mm, IP68, silver, 53105300
Order No.: 12H6895
EAN: 4099891198909
MPN:
53105300
SKINTOPHYGIENICSCM12X1,5
Series: SKINTOP HYGIENIC SC
Unit Price (€ / pc.)
48.9447 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
244.72 € *
Price list
Quantity
Price per unit*
5 pcs.
48.9447 €
10 pcs.
47.0883 €
50 pcs.
44.9939 €
100 pcs.
43.1256 €
*incl. VAT plus shipping costs
Subject to prior sale

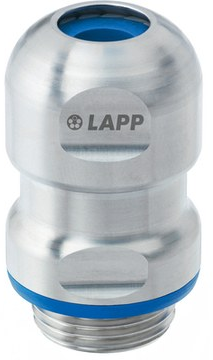

Cable gland, 53105300, LAPP

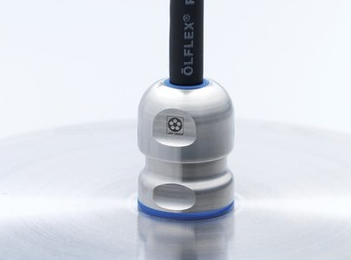

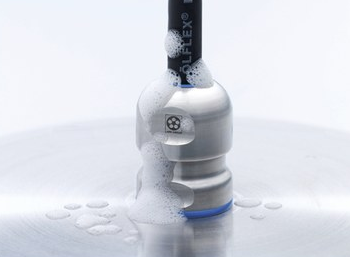

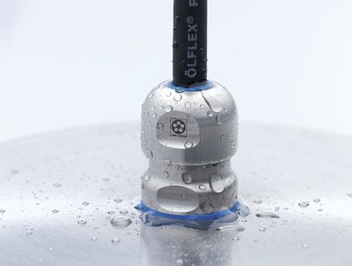

SKINTOP® HYGIENIC, resistant stainless steel cable gland with smooth surfaces for use in product zone.
Features
- Mechanical resistance
- Good chemical resistance
- Wide clamping range
- Interference signals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 16 mm | |
| max. operating temperature | 100 °C | |
| max. clamping range | 6 mm | |
| Thread size | M12 | |
| Length | 38.4 mm | |
| Colour | silver | |
| Degree of protection (IP) | IP68 | |
| Material | stainless steel | |
| min. clamping range | 4 mm | |
| min. operating temperature | -20 °C | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
