53105130 | LAPP

Cable gland, M25, 29 mm, Clamping range 11.5 to 15.5 mm, IP68, silver, 53105130

Order No.: 32P2760
EAN: 4044776767428
MPN:
53105130
SKINTOP HYGIENIC M25X1,5

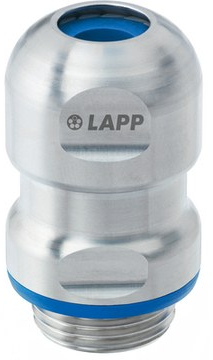

53105130 LAPP Cable Glands Image 1

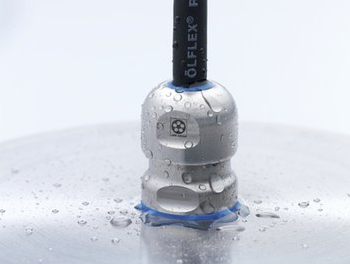

53105130 LAPP Cable Glands Image 2

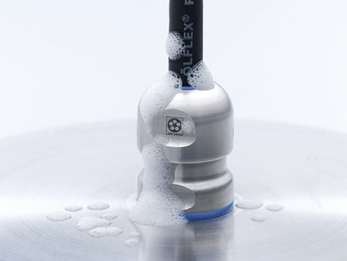

53105130 LAPP Cable Glands Image 3

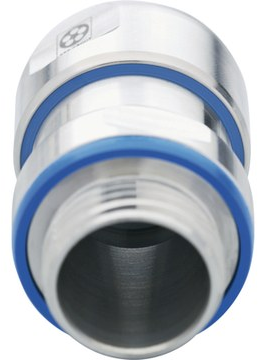

53105130 LAPP Cable Glands Image 4
Image may differ
Unit Price (€ / pc.)
66.4496 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
332.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
66.4496 €
SKINTOP® HYGIENIC / SKINTOP® HYGIENIC-R, resistant stainless steel cable gland with smooth surfaces for use in the product zone. Optimal for hygiene-critical areas resistant, edge-free, robust and reliable, no gaps, cavities or external threads - therefore no risk of contamination of food machines, equipment or components. Material and shape offer easy and safe cleaning. The blue colouring of the sealing material makes it clearly distinguishable from foodstuffs. A complete component allows easy installation from the outside. Metric connecting thread according to DIN EN 60423, basis for technical specifications DIN IEC 62444.
Technical specifications
Filter Property Value
Colour silver
Thread size M25
max. clamping range 15.5 mm
Degree of protection (IP) IP68
Length 48.9 mm
max. operating temperature 100 °C
min. operating temperature -20 °C
spanner size 29 mm
Material stainless steel
Product type cable gland
min. clamping range 11.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 73269098
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
