53105110 | LAPP

Cable gland, M16, 20 mm, Clamping range 6.5 to 9 mm, IP68, silver, 53105110

Order No.: 32P2758
EAN: 4044776767411
MPN:
53105110
SKINTOP HYGIENIC M16X1,5

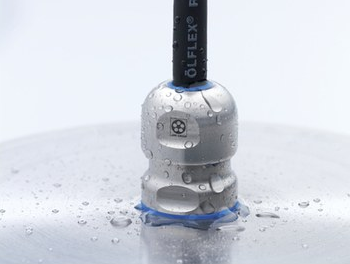

53105110 LAPP Cable Glands Image 1

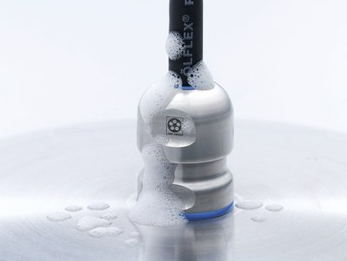

53105110 LAPP Cable Glands Image 2

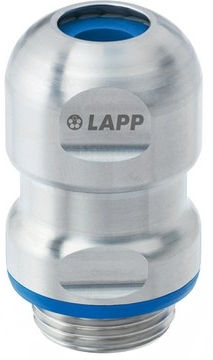

53105110 LAPP Cable Glands Image 3

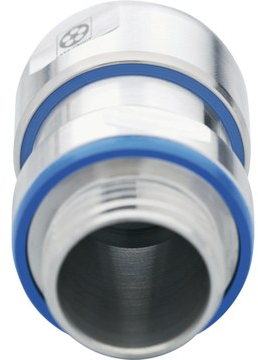

53105110 LAPP Cable Glands Image 4
Image may differ
Unit Price (€ / pc.)
50.1109 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
250.55 € *
Price list
Quantity
Price per unit*
5 pcs.
50.1109 €
10 pcs.
48.3973 €
25 pcs.
46.6718 €
*incl. VAT plus shipping costs
Subject to prior sale
SKINTOP® HYGIENIC / SKINTOP® HYGIENIC-R, resistant stainless steel cable gland with smooth surfaces for use in the product zone. Optimal for hygiene-critical areas resistant, edge-free, robust and reliable, no gaps, cavities or external threads - therefore no risk of contamination of food machines, equipment or components. Material and shape offer easy and safe cleaning. The blue colouring of the sealing material makes it clearly distinguishable from foodstuffs. A complete component allows easy installation from the outside. Metric connecting thread according to DIN EN 60423, basis for technical specifications DIN IEC 62444.
Technical specifications
Filter Property Value
Colour silver
Thread size M16
max. clamping range 9 mm
Degree of protection (IP) IP68
Length 41.4 mm
max. operating temperature 100 °C
min. operating temperature -20 °C
spanner size 20 mm
Material stainless steel
Product type cable gland
min. clamping range 6.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 73269098
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
