53017840 | LAPP

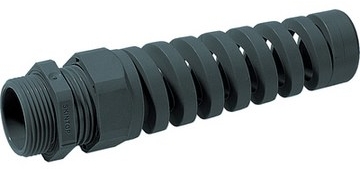

Cable gland, M25, 27 mm, Clamping range 9 to 14 mm, IP68, black, 53017840
Order No.: 32P2736
EAN: 4044773158373
MPN:
53017840
SKINTOP BS ISO M25x1,5 RAL9005
Series: SKINTOP BS
Unit Price (€ / pc.)
4.1650 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
104.13 € *
Price list
Quantity
Price per unit*
25 pcs.
4.1650 €
50 pcs.
3.9389 €
100 pcs.
3.6652 €
500 pcs.
3.4510 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 100 °C | |
| Length | 114.5 mm | |
| min. clamping range | 9 mm | |
| Thread size | M25 | |
| min. operating temperature | -20 °C | |
| Colour | black | |
| spanner size | 27 mm | |
| max. clamping range | 14 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
