53017430 | LAPP
Cable gland, M20, 27 mm, Clamping range 5 to 12 mm, IP68, silver gray, 53017430
Unit Price (€ / pc.)
2.8203 € *
Available: 21 pcs.
Total Price:
2.82 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8203 €
25 pcs.
2.4038 €
100 pcs.
2.2253 €
250 pcs.
2.1063 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale

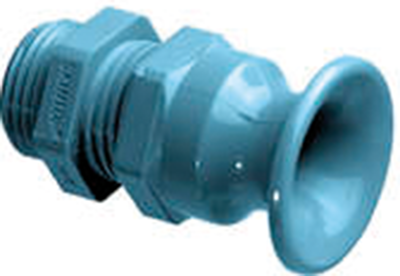

Metric screwed cable glands with kink protection series SKINTOP BT-M, type Lapp Kabel 53017430.
With trumpet-shaped cable outlet for flexible leads and metric thread to EN 50262; Material: polyamide. Seal ring: CR. Operating temperatures: –20 to +100 °C. Color: silver gray (RAL 7001). Degree of protection: IP 68. Mounting: using the locknut described below (available on separate order).

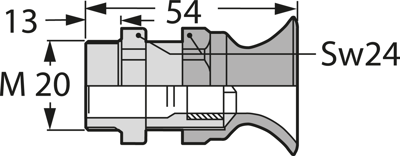

Technical attributes (thread, cable clamping range): M 20, 5.0 to 12 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver gray | |
| Thread size | M20 | |
| max. clamping range | 12 mm | |
| Degree of protection (IP) | IP68 | |
| Length | 54 mm | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| spanner size | 27 mm | |
| Material | PA | |
| Product type | cable gland | |
| min. clamping range | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
