53017420 | LAPP

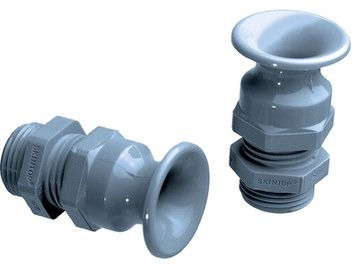

Cable gland, M16, 19 mm, Clamping range 3.5 to 8 mm, IP68, silver gray, 53017420
Order No.: 32P3053
EAN: 4044773158649
MPN:
53017420
SKINTOP BT-M16x1,5 RAL7001 SGY
Series: SKINTOP BT-M
Unit Price (€ / pc.)
1.7612 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
176.12 € *
Price list
Quantity
Price per unit*
100 pcs.
1.7612 €
500 pcs.
1.6541 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| max. clamping range | 8 mm | |
| Length | 45 mm | |
| min. clamping range | 3.5 mm | |
| Colour | silver gray | |
| min. operating temperature | -20 °C | |
| Thread size | M16 | |
| spanner size | 19 mm | |
| max. operating temperature | 100 °C | |
| Degree of protection (IP) | IP68 | |
| Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
