53015840 | LAPP

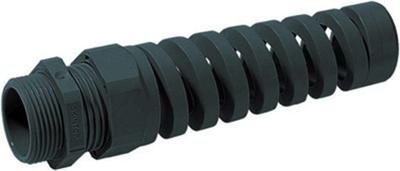

Cable gland, with bend protection, PG16, 27 mm, Clamping range 9 to 14 mm, IP68, black, 53015840
Unit Price (€ / pc.)
2.9155 € *
Available: 14 pcs.
Total Price:
2.92 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9155 €
25 pcs.
2.4871 €
100 pcs.
2.3086 €
250 pcs.
2.1777 €
1000 pcs.
1.9992 €
*incl. VAT plus shipping costs
Subject to prior sale
Screwed cable glands with spiral kink protection, series SKINTOP BS, type Lapp Kabel 5301
Ideal and absolutely protective strain relief and flexible anti-kink guard for installing cables, wires and conduit. Fixing, centering and sealing and strain relief in a single pass by tightening the pressure screw.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Version | with bend protection | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 80 °C | |
| Length | 113 mm | |
| min. clamping range | 9 mm | |
| Thread size | PG16 | |
| min. operating temperature | -20 °C | |
| Colour | black | |
| spanner size | 27 mm | |
| max. clamping range | 14 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
