53015800 | LAPP

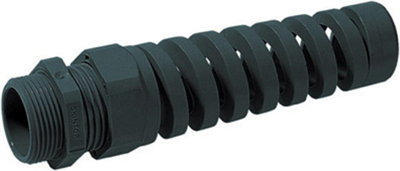

Cable gland, with bend protection, PG7, 15 mm, Clamping range 2.5 to 6.5 mm, IP68, black, 53015800

Order No.: 12H2806
EAN: 4044773159974
MPN:
53015800
SKINTOP BS PG 7
Series: SKINTOP BS
53015800 LAPP Cable Glands
Image may differ
Unit Price (€ / pc.)
1.8802 € *
Available: 413 pcs.
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
25 pcs.
1.5827 €
100 pcs.
1.4637 €
250 pcs.
1.3923 €
1000 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale

Screwed cable glands with spiral kink protection, series SKINTOP BS, type Lapp Kabel 5301

Ideal and absolutely protective strain relief and flexible anti-kink guard for installing cables, wires and conduit. Fixing, centering and sealing and strain relief in a single pass by tightening the pressure screw.

Technical specifications
Filter Property Value
spanner size 15 mm
Colour black
Degree of protection (IP) IP68
min. operating temperature -20 °C
max. operating temperature 80 °C
Version with bend protection
Material PA
max. clamping range 6.5 mm
min. clamping range 2.5 mm
Length 62 mm
Thread size PG7
Product type cable gland
Logistics
Property Value
Customs tariff number 39269097
Country of origin CH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
