53015600 | LAPP

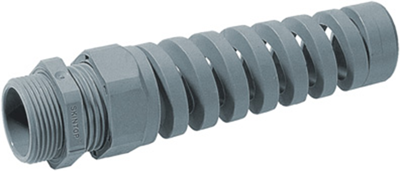

Cable gland, with bend protection, PG7, 15 mm, Clamping range 2.5 to 6.5 mm, IP68, silver gray, 53015600
Unit Price (€ / pc.)
1.8802 € *
Available: 136 pcs.
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
25 pcs.
1.5827 €
100 pcs.
1.4637 €
250 pcs.
1.3923 €
1000 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale
Screwed cable glands with spiral kink protection, series SKINTOP BS, type Lapp Kabel 5301
Ideal and absolutely protective strain relief and flexible anti-kink guard for installing cables, wires and conduit. Fixing, centering and sealing and strain relief in a single pass by tightening the pressure screw.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. clamping range | 2.5 mm | |
| max. operating temperature | 80 °C | |
| Material | PA | |
| min. operating temperature | -20 °C | |
| Version | with bend protection | |
| Colour | silver gray | |
| spanner size | 15 mm | |
| Thread size | PG7 | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 6.5 mm | |
| Product type | cable gland | |
| Length | 62 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
