53015020 | LAPP

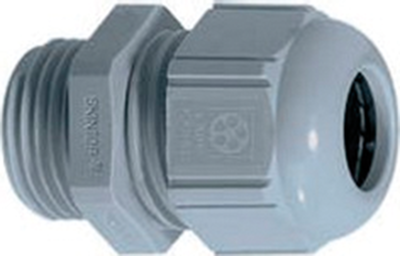

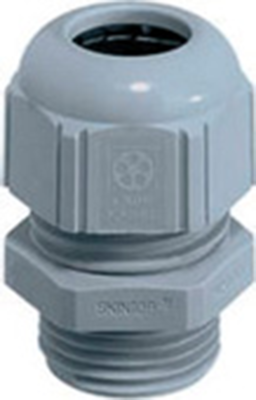

Cable gland, PG11, 22 mm, Clamping range 4 to 10 mm, IP68, silver gray, 53015020
Unit Price (€ / pc.)
1.0591 € *
Available: 110 pcs.
Leadtime: 1 Week **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9282 €
100 pcs.
0.8568 €
500 pcs.
0.7854 €
1000 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale
Screwed cable glands series SKINTOP ST, type Lapp Kabel 5301.

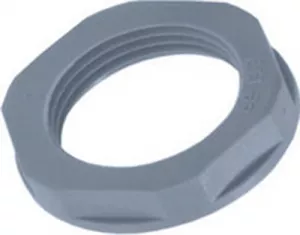

To VDE and UL, for optimal and absolutely protective strain relief of the cable for optimal and absolutely protective strain relief of the cable. Fixing, Centering, sealing and strain relief in a single pass by tightening the pressure screw; Degree of protection: IP 68. Material: polyamide. Seal: CR. Operating temperatures: –20 to +80 °C. The locknut is not included (please order separately).

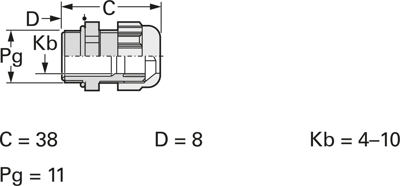

Technical attributes (Pg size, cable clamping range, dimensions (C/D), width across flats (W) in [mm], color (silver gray/RAL 7001, black/RAL 9005)): Pg 11, 4.0 to 10 mm, C 38/D 8.0 mm, W 22, silver gray
Technical specifications
| Colour | silver gray | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 10 mm | |
| Length | 38 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | PA | |
| spanner size | 22 mm | |
| max. operating temperature | 80 °C | |
| min. clamping range | 4 mm | |
| Thread size | PG11 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
