53015010 | LAPP
Cable gland, PG9, 19 mm, Clamping range 3 to 8 mm, IP68, silver gray, 53015010
Unit Price (€ / pc.)
0.8568 € *
Available: 171 pcs.
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.7497 €
100 pcs.
0.6902 €
500 pcs.
0.6307 €
1000 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale

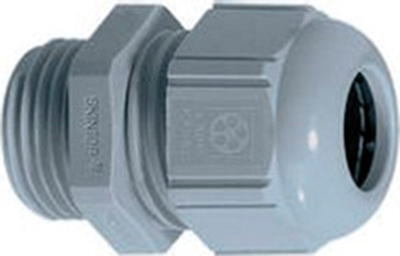

Screwed cable glands series SKINTOP ST, type Lapp Kabel 5301.
To VDE and UL, for optimal and absolutely protective strain relief of the cable for optimal and absolutely protective strain relief of the cable. Fixing, Centering, sealing and strain relief in a single pass by tightening the pressure screw; Degree of protection: IP 68. Material: polyamide. Seal: CR. Operating temperatures: –20 to +80 °C. The locknut is not included (please order separately).

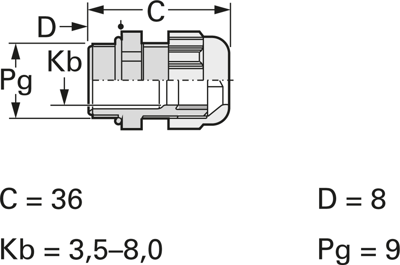

Technical attributes (Pg size, cable clamping range, dimensions (C/D), width across flats (W) in [mm], color (silver gray/RAL 7001, black/RAL 9005)): Pg 9, 3.5 to 8.0 mm, C 36/D 8.0 mm, W 19, silver gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 19 mm | |
| Colour | silver gray | |
| Degree of protection (IP) | IP68 | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 80 °C | |
| Material | PA | |
| max. clamping range | 8 mm | |
| min. clamping range | 3 mm | |
| Length | 36 mm | |
| Thread size | PG9 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
