52106795 | LAPP

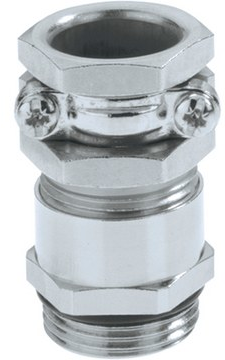

Cable gland, M63, 64/66 mm, Clamping range 40 to 47.5 mm, IP55, 52106795
Order No.: 32P2019
EAN: 4044773169478
MPN:
52106795
SKINDICHT SHZ-M-XL 63x1,5/48
Series: SKINDICHT SHZ
Unit Price (€ / pc.)
85.1564 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
425.78 € *
Price list
Quantity
Price per unit*
5 pcs.
85.1564 €
10 pcs.
80.6701 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 80 °C | |
| spanner size | 64/66 mm | |
| Length | 73 mm | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| Thread size | M63 | |
| min. clamping range | 40 mm | |
| max. clamping range | 47.5 mm | |
| Degree of protection (IP) | IP55 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
