52106785 | LAPP

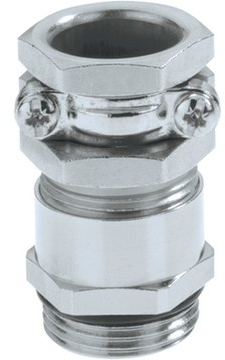

Cable gland, M50, 57/57 mm, Clamping range 35 to 43 mm, IP55, 52106785
Order No.: 32P2018
EAN: 4044773169553
MPN:
52106785
SKINDICHT SHZ-M-XL 50x1,5/42
Series: SKINDICHT SHZ
Unit Price (€ / pc.)
77.0049 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
77.00 € *
Price list
Quantity
Price per unit*
1 pcs.
77.0049 €
10 pcs.
69.6626 €
25 pcs.
65.9974 €
50 pcs.
62.3322 €
100 pcs.
58.6670 €
*incl. VAT plus shipping costs
Subject to prior sale

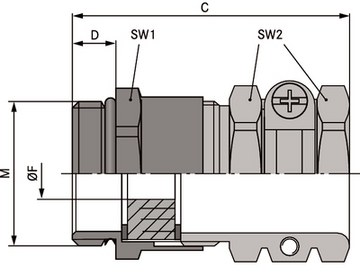

Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 57/57 mm | |
| max. operating temperature | 80 °C | |
| max. clamping range | 43 mm | |
| Thread size | M50 | |
| Length | 70 mm | |
| Degree of protection (IP) | IP55 | |
| Material | brass, nickel-plated | |
| min. clamping range | 35 mm | |
| min. operating temperature | -20 °C | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
