52106735 | LAPP

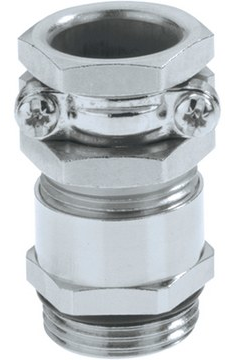

Cable gland, M20, 22/22 mm, Clamping range 8.5 to 13 mm, IP55, 52106735
Order No.: 32P2013
EAN: 4044773169904
MPN:
52106735
SKINDICHT SHZ-M-XL 20x1,5/13,5
Series: SKINDICHT SHZ
Unit Price (€ / pc.)
12.5069 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.51 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5069 €
10 pcs.
11.3050 €
25 pcs.
10.7219 €
50 pcs.
10.1150 €
100 pcs.
9.5319 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 80 °C | |
| spanner size | 22/22 mm | |
| Length | 43.5 mm | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| Thread size | M20 | |
| min. clamping range | 8.5 mm | |
| max. clamping range | 13 mm | |
| Degree of protection (IP) | IP55 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
