52106730 | LAPP

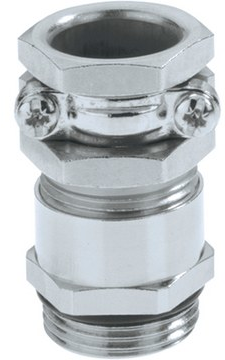

Cable gland, M20, 22/22 mm, Clamping range 8.5 to 13 mm, IP55, 52106730
Order No.: 32P2003
EAN: 4044773169935
MPN:
52106730
SKINDICHT SHZ-M 20x1,5/13,5
Series: SKINDICHT SHZ
Unit Price (€ / pc.)
10.4839 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.48 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4839 €
10 pcs.
9.4843 €
25 pcs.
8.9964 €
50 pcs.
8.4847 €
100 pcs.
7.9968 €
*incl. VAT plus shipping costs
Subject to prior sale

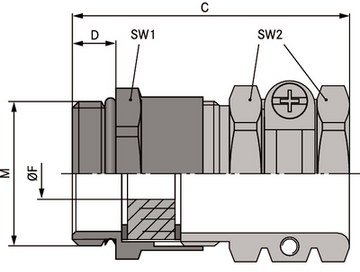

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M20 | |
| min. clamping range | 8.5 mm | |
| max. clamping range | 13 mm | |
| spanner size | 22/22 mm | |
| Length | 39.5 mm | |
| Degree of protection (IP) | IP55 | |
| Material | brass, nickel-plated | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
