52106705 | LAPP

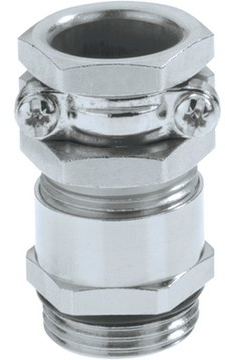

Cable gland, M12, 14/15 mm, Clamping range 5.5 to 6.5 mm, IP55, 52106705
Order No.: 32P2010
EAN: 4044773170115
MPN:
52106705
SKINDICHT SHZ-M-XL 12x1,5/7
Series: SKINDICHT SHZ
Unit Price (€ / pc.)
7.8183 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.82 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8183 €
10 pcs.
7.0924 €
25 pcs.
6.6997 €
50 pcs.
6.3308 €
100 pcs.
5.9619 €
*incl. VAT plus shipping costs
Subject to prior sale

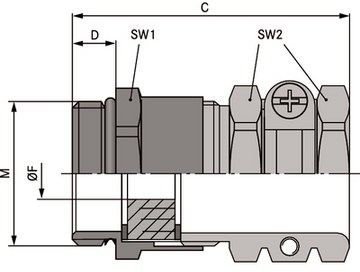

Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 14/15 mm | |
| max. operating temperature | 80 °C | |
| max. clamping range | 6.5 mm | |
| Thread size | M12 | |
| Length | 35 mm | |
| Degree of protection (IP) | IP55 | |
| Material | brass, nickel-plated | |
| min. clamping range | 5.5 mm | |
| min. operating temperature | -20 °C | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
