52106570 | LAPP
Cable gland, with bend protection, PG36, 50/50 mm, Clamping range 28 to 30 mm, IP65, 52106570
Order No.: 32P2267
EAN: 4044773170597
MPN:
52106570
SKINDICHT SR-M 40x1,5/36/30
Series: SKINDICHT SR-M
Unit Price (€ / pc.)
53.4191 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
53.42 € *
Price list
Quantity
Price per unit*
1 pcs.
53.4191 €
5 pcs.
50.4560 €
10 pcs.
47.4810 €
25 pcs.
44.5179 €
50 pcs.
41.5429 €
*incl. VAT plus shipping costs
Subject to prior sale

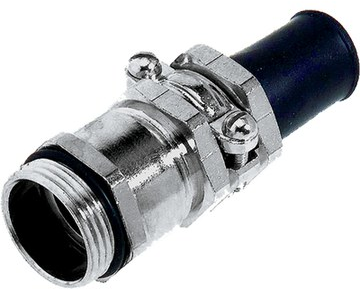

Cable gland, 52106570, LAPP
SKINDICHT® SR-M, robust, metric cable gland with reliable bending and anti-kink protection for cables with large outer diameters.
BENEFITS
- Reliable bending and anti-kink protection
- High strain relief
- For cables with large outer diameters
- High degree of protection
TECHNICAL DATA
- Protection rating: IP65
- Temperature range: -20 °C to 80 °C
- Material: Brass, nickel-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | PG36 | |
| max. operating temperature | 80 °C | |
| max. clamping range | 30 mm | |
| Length | 108 mm | |
| Product type | cable gland | |
| min. clamping range | 28 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 50/50 mm | |
| Degree of protection (IP) | IP65 | |
| Version | with bend protection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
