52106560 | LAPP
Cable gland, with bend protection, PG36, 50/50 mm, Clamping range 24 to 26 mm, IP65, 52106560
Order No.: 32P2266
EAN: 4044773170665
MPN:
52106560
SKINDICHT SR-M 40x1,5/36/26
Series: SKINDICHT SR-M
Unit Price (€ / pc.)
52.3362 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
52.34 € *
Price list
Quantity
Price per unit*
1 pcs.
52.3362 €
5 pcs.
49.4207 €
10 pcs.
46.5052 €
25 pcs.
43.6135 €
50 pcs.
40.7099 €
*incl. VAT plus shipping costs
Subject to prior sale

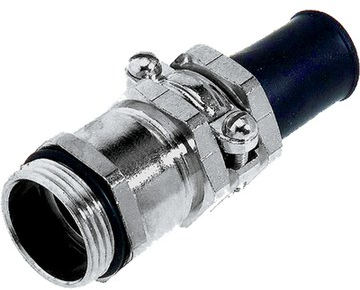

Cable gland, 52106560, LAPP
SKINDICHT® SR-M, robust, metric cable gland with reliable bending and anti-kink protection for cables with large outer diameters.
BENEFITS
- Reliable bending and anti-kink protection
- High strain relief
- For cables with large outer diameters
- High degree of protection
TECHNICAL DATA
- Protection rating: IP65
- Temperature range: -20 °C to 80 °C
- Material: Brass, nickel-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | PG36 | |
| max. operating temperature | 80 °C | |
| max. clamping range | 26 mm | |
| Length | 108 mm | |
| Product type | cable gland | |
| min. clamping range | 24 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 50/50 mm | |
| Degree of protection (IP) | IP65 | |
| Version | with bend protection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
