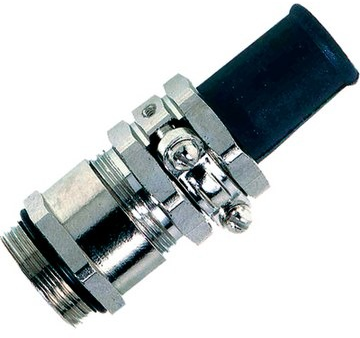

52105630 | LAPP
Cable gland, M20, 24/24 mm, Clamping range 11 to 13 mm, IP65, 52105630
Order No.: 32P2239
EAN: 4044773173512
MPN:
52105630
SKINDICHTSRE-M 20x1,5/16/13/10
Series: SKINDICHT SRE
Unit Price (€ / pc.)
18.6473 € *
Standard delivery time from the manufacturer is: On Request
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 24/24 mm | |
| Material | brass, nickel-plated | |
| Product type | cable gland | |
| Degree of protection (IP) | IP65 | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -20 °C | |
| Thread size | M20 | |
| min. clamping range | 11 mm | |
| Length | 64.5 mm | |
| max. clamping range | 13 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
